Nyias zaj duab xis Circuit Court Technology

Thin Film Circuit Technology

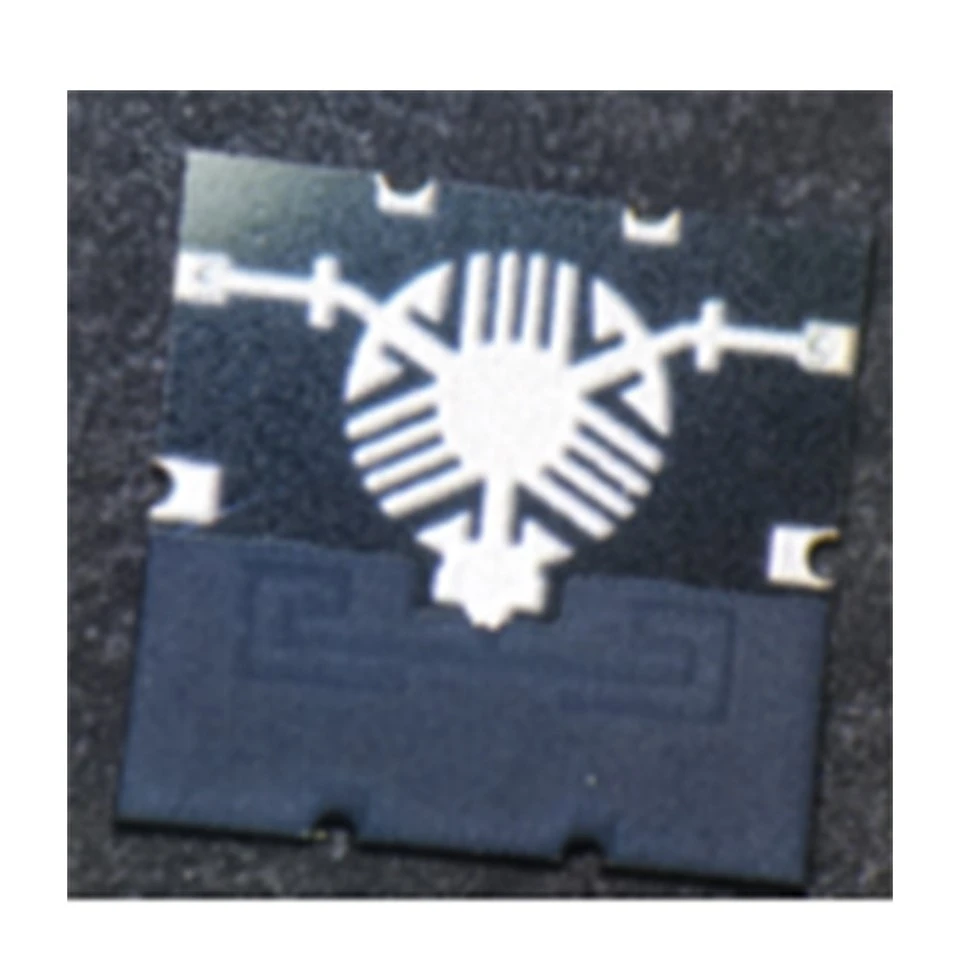

Thin Film Circuit Technology suppliers
Thin Film Circuit Technology factory

Nyias zaj duab xis Circuit Court Technology

Thin Film Circuit Technology siv nyias zaj duab xis deposition, photolithography, etching, thiab metallization txheej txheem los tsim micron -scale conductive kab nyob rau saum npoo ntawm ceramic, iav, los yog silicon-raws li cov ntaub ntawv, ua kom siab - ntom, siab - kev ntseeg tau hauv hluav taws xob kev koom ua ke.

Xa kev nug

Hauj lwm lawm

Kev tsis

Khoom zoo

High linear precision:Siv cov txheej txheem photolithography thiab lub tshuab nqus tsev tso tawm, cov txheej txheem linewidths thiab qhov sib txawv tuaj yeem ncav cuag 20μm, nrog rau cov haujlwm tshwj xeeb ua tiav 10μm qib.

Low Signal Loss:High-purity hlau nyias zaj duab xis thiab zoo kab tsim kom txo tau qhov tsis kam thiab kis tau tus mob, ua rau nws haum rau 5G kev sib txuas lus, millimeter-wave, thiab high-ceev hluav taws xob systems.

Qhov zoo tshaj plaws tshav kub dissipation:Ua ke nrog cov thermal conductivity substrates xws li alumina thiab aluminium nitride, cua sov tuaj yeem ua kom sai sai, txo cov cuab yeej kub thiab txhim kho kev ruaj ntseg.

Yog vim li cas nyias zaj duab xis Technology

Kev koom ua ke siab dua

Txhawb siab - qauv tsim Circuit Court, txo cov khoom loj.

Superior Hluav Taws Xob Kev Ua Haujlwm

Txo cov teeb liab poob thiab txhim kho kev sib kis tau zoo.

Txhim kho Thermal Management

Txhim kho cua sov dissipation rau cov khoom siv fais fab.

Ntev Lifespan

Txo tus nqi tsis ua hauj lwm thiab cov nqi tu.

Cov khoom xaiv

Cov khoom siv substrate:Alumina (Al₂O₃), Aluminium Nitride (AlN), Silicon Nitride (Si₃N₄), iav-Ceramic.

Hlau Systems:Kub, Nyiaj, tooj liab, npib tsib xee, Platinum, thiab Custom Multilayer Hlau Structures.

Technology peev xwm

Thin Film Deposition:Txhawb cov fabrication ntawm ntau yam hlau thiab haumxeeb films.

Precision Lithography:Ua kom muaj micron-level circuit patterning.

Precision etching:Ua kom lub voj voog qhov ntev thiab sib xws.

Surface Metallization:Txhawb kub plating, nyiaj plating, thiab ENIG ua.

Multilayer Integration:Txhawb ib - txheej, ob - txheej, thiab ntau txheej txheej tsim.

Technical Specifications

Yam khoom	Specification
Kab Kab Dav/Spacing	20/20 μm
Advanced Capability	Mus txog 10/10 μm *
Cov khoom siv substrate	Al₂O₃, AlN, Si₃N₄, Glass
Hlau Systems	Au, Ag, Cu, Ni, Pt
Cov txheej txheem Circuit Court	Ib / Ob / Multilayer
Ua haujlwm kub	-55℃rau 300 degree
Nto tiav	ENIG, Kub Plating, Nyiaj Plating
Metallization Thickness	Customized
Custom Design	Muaj

Quality Assurance

Kev Tswj Xyuas Zoo

Tag nrho - txheej txheem tswj raws li ISO cov qauv.

Raw Material Traceability

Batch tswj thiab tag nrho - txheej txheem traceability.

Kev Tshawb Fawb Kev Ntseeg

Txhawb nqa thermal cycling, ntub dej kub, thiab kev ntsuas hluav taws xob.

Conformity Control

Ua kom ntev -lub sij hawm muab khoom ruaj khov.

Daim ntawv thov kev lag luam

Semiconductor Ntim:Siv rau siab -kev sib tshuam kev sib tshuam thiab kev ntim khoom siab heev.

Lub zog Electronics:Siv hauv IGBTs, SiC, thiab fais fab modules.

RF Kev Sib Txuas Lus:Haum rau 5G, millimeter-wave, thiab radar systems.

Automotive Electronics:Siv nyob rau hauv tsheb tshiab zog thiab tsheb- qib modules.

Medical Electronics:Ua tau raws li qhov xav tau ntawm siab -cov khoom siv hluav taws xob muaj kev ntseeg siab.

Aerospace:Haum rau siab -kub thiab complex ib puag ncig daim ntaub ntawv.

Customization Muaj peev xwm

Drawing Customization:Txhawb Gerber thiab CAD cov ntaub ntawv txhim kho.

Khoom siv Customization:Kev xaiv cov khoom raws li thermal conductivity thiab hluav taws xob kev ua tau zoo.

Structure Optimization:Txhawb Circuit Court thiab ntau- txheej txheej tsim.

Qauv rau Mass Production:Muab ib qho - nres kev txhim kho.

Lub tuam txhab muaj zog

20+ Xyoo Kev Tsim Khoom
Founded hauv 2003, tshwj xeeb hauv R & D thiab tsim cov ntaub ntawv tshiab inorganic, nrog ntau tshaj 20 xyoo ntawm kev lag luam kev lag luam.

Muaj peev xwm tsim tau ruaj khov
Muaj lub hauv paus loj - nplai ntau lawm thiab ua tiav cov txheej txheem tsim khoom, txhawb nqa ntev - lub sijhawm ruaj khov los ntawm cov neeg siv khoom thoob ntiaj teb.

Professional R & D pab neeg
Muaj cov ntaub ntawv R & D thiab kev ua haujlwm tau zoo, muab cov kev daws teeb meem.

Kev Tswj Xyuas Zoo
Nruab nrog cov cuab yeej ntsuas qib siab, nruj me ntsis tswj cov khoom zoo thiab batch stability.

Ntiaj teb no Export Experience
Cov khoom raug xa tawm mus rau kev lag luam txawv teb chaws, nrog cov kev pabcuam xa tawm thiab cov neeg siv khoom muaj peev xwm txhawb nqa.

Customized Solutions
Txhawb customization ntawm cov khoom specifications, kev ua tau zoo, thiab daim ntawv thov yuav tsum tau raws li ntau haiv neeg cov kev xav tau.

FAQ

Q: Cov ntaub ntawv dab tsi substrate koj tuaj yeem muab tau?

A: Peb tuaj yeem muab cov substrates xws li alumina (Al₂O₃), aluminium nitride (AlN), silicon nitride (Si₃N₄), thiab iav -ceramic substrates, thiab tuaj yeem pom zoo cov kev daws teeb meem raws li thermal conductivity, rwb thaiv tsev, thiab cov nqi xav tau.

Q: Dab tsi yog qhov tsawg kawg nkaus linewidth thiab kab sib nrug koj tuaj yeem ua tiav?

A: Peb tus qauv tsim muaj peev xwm yog 20/20μm. Cov kev daws teeb meem siab dua tuaj yeem muab rau cov haujlwm tshwj xeeb, nyob ntawm cov khoom tsim thiab kev soj ntsuam cov txheej txheem.

Q: Koj puas txhawb nqa ib qho - txheej thiab ntau - txheej nyias - zaj duab xis tsim hluav taws xob?

A: Peb txhawb nqa ib qho - txheej, ob npaug - txheej, thiab ntau - txheej nyias- zaj duab xis Circuit Court qauv, thiab tuaj yeem hloov kho kev txhim kho raws li cov khoom siv sib xyaw thiab cov ntawv thov.

Q: Koj puas tuaj yeem hloov kho ntau lawm raws li cov neeg siv khoom kos duab?

A: Yog. Peb txhawb Gerber, CAD, thiab lwm yam ntaub ntawv engineering, thiab muab DFM tshuaj xyuas, xaiv cov khoom siv, thiab cov kev pabcuam txhim kho cov qauv.

Q: Koj puas txhawb nqa cov qauv thiab me me -batch sim ntau lawm?

A: Peb txhawb nqa prototyping sai thiab me me - batch sim ntau lawm, pab cov neeg siv khoom luv luv cov khoom tsim tawm thiab txo qis - theem R & D txaus ntshai.

Q: Cov kev ntsuam xyuas kev ntseeg tau li cas cov khoom yuav raug?

A: Peb tuaj yeem ua thermal cycling, damp heat aging, adhesion, hluav taws xob kev ua tau zoo, thiab kev ntsuam xyuas ib puag ncig raws li qhov yuav tsum tau ua, thiab muab cov ntawv ceeb toom cuam tshuam.

Q: Cov kev lag luam twg yog peb cov khoom tsim nyog rau?

A: Siv dav hauv ntim khoom ntim, IGBT/SiC fais fab modules, 5G kev sib txuas lus, automotive electronics, khoom kho mob, thiab aerospace.

Q: Koj lub sijhawm xa khoom yog dab tsi?

A: Tus qauv coj mus kuaj lub sij hawm yog feem ntau 2-3 lub lis piam. Lub sij hawm xa tuaj rau kev txiav txim ntau yog nyob ntawm cov khoom tsim thiab kev txiav txim kom muaj nuj nqis. Peb tuaj yeem txhawb nqa qhov kev tsim kho sai.

Q: Koj puas tuaj yeem lav qhov ntev - lub sijhawm khoom ruaj khov?

A: Peb muaj kev tswj xyuas kom zoo thiab cov saw hlau xa khoom kom tau raws li cov kev xav tau ntawm cov khoom siv txuas ntxiv mus ntev - cov haujlwm ntev thiab cov neeg yuav khoom ntau.

Q: Koj puas tuaj yeem kos npe rau daim ntawv cog lus tsis pub lwm tus paub (NDA)?

A: Yog. Peb hwm peb cov neeg siv khoom txoj cai kev txawj ntse thiab tuaj yeem kos npe rau NDA cov ntawv cog lus, tiv thaiv kev ruaj ntseg ntawm cov neeg siv khoom kos duab, cov ntaub ntawv kev txawj ntse, thiab cov ntaub ntawv project.
